The cloud gateway at night · Lincoln International District

Public art / 05

Shimmering-Cloud Gateway

We fabricated the cloud structures, patterned columns and lantern sculptures for Horatio Law’s gateway in Tacoma’s Lincoln International District.

Lincoln International District · Tacoma
Artistic concept: Horatio Hung-Yan Law Fabrication: Western Iron Works
The project
Artistic concept
Horatio Hung-Yan Law
Location
Tacoma, Washington
Fabrication
Western Iron Works
Completed
2018 gateway

The artist’s idea

Why clouds in the Lincoln District?

These clouds are about aspiration: the hopes people hold for their community.

Horatio Law’s idea grew from a conversation with Lincoln High School’s principal about the aspirations of his students. Community workshops helped develop the theme.

Law chose clouds for a neighborhood whose people and cultures continue to change. The forms connect traditional cloud motifs with contemporary thought and text bubbles—an image of imagination and optimism shared across the district. The sequins reflect daylight, and lighting illuminates the clouds after dark.

01 /

Cloud gateway

Fabrication and installation

We fabricated and welded the cloud structures, which were then covered in reflective sequins. These photos follow the assemblies from transport to installation above the street.

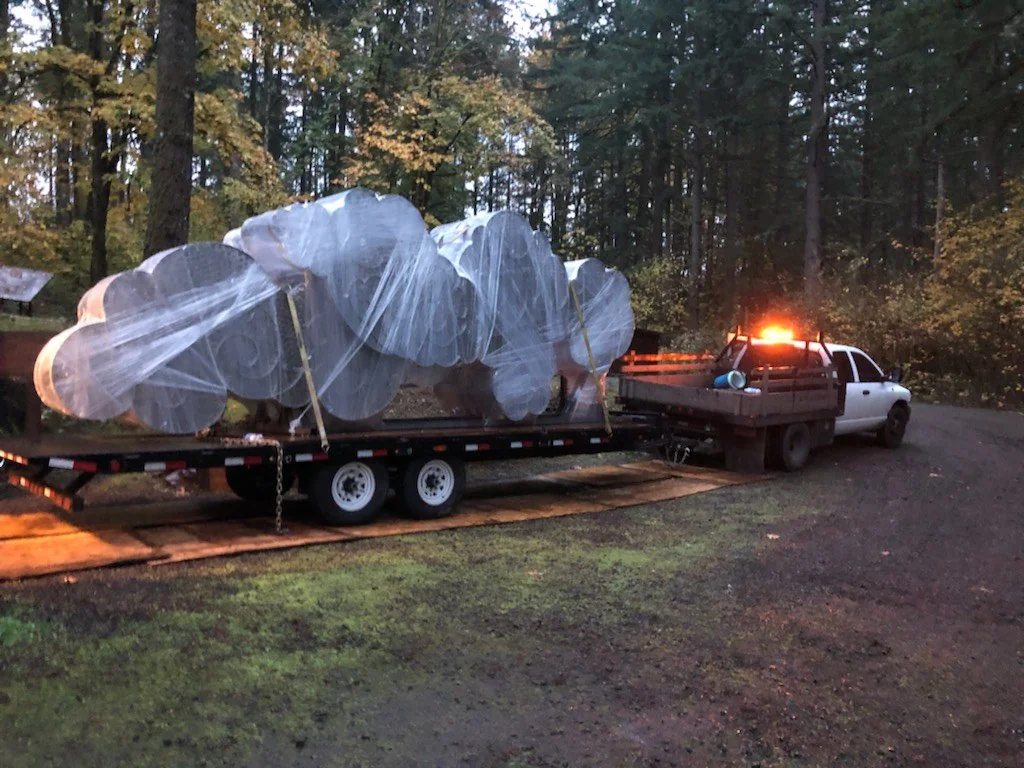

The cloud assembly, protected and secured for transport.

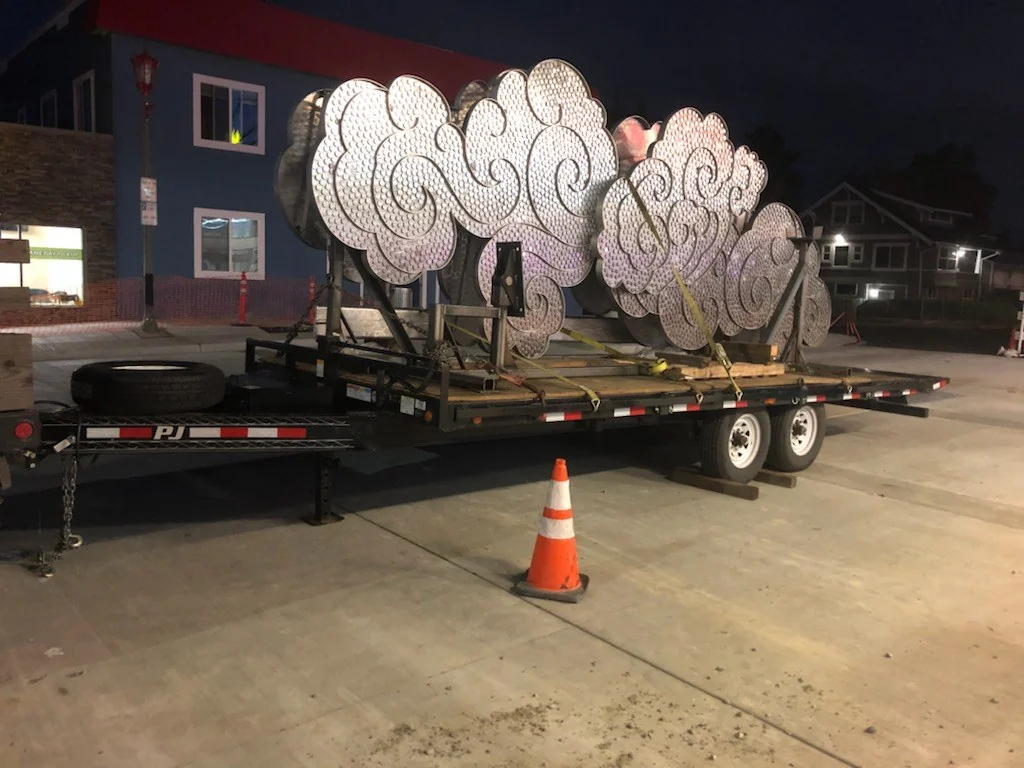

Unwrapped cloud forms on the trailer before the lift.

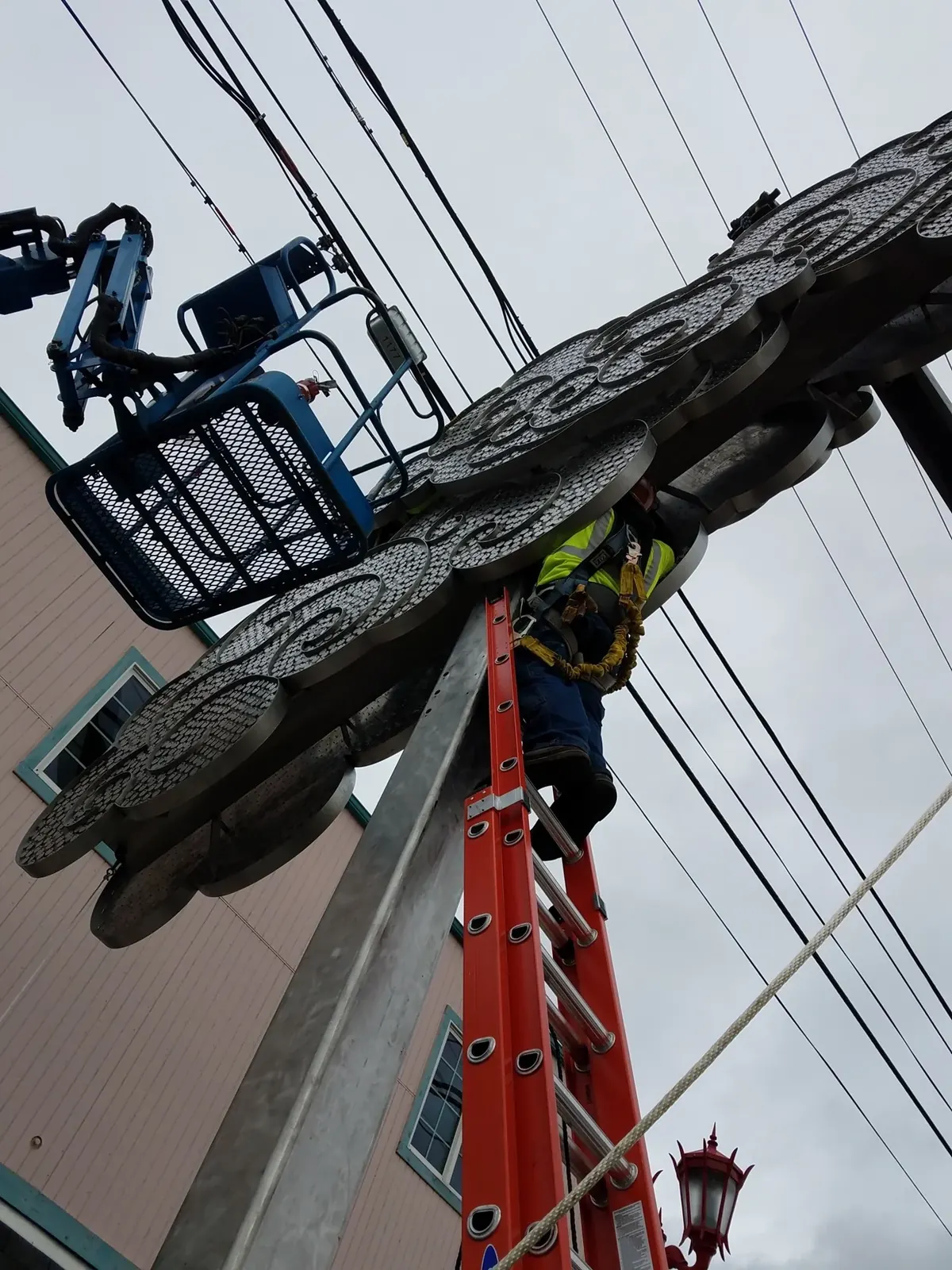

The cloud assembly being installed above the sidewalk.
A short daylight view of the cloud pattern and reflective sequins.
02 /

Cloud gateway detail

Stainless steel discs

Each 1½-inch-diameter disc is cut from 18-gauge 304 stainless steel. A ⅛-inch hole drilled at the top accepts a 304 stainless steel 6-32 shoulder bolt.

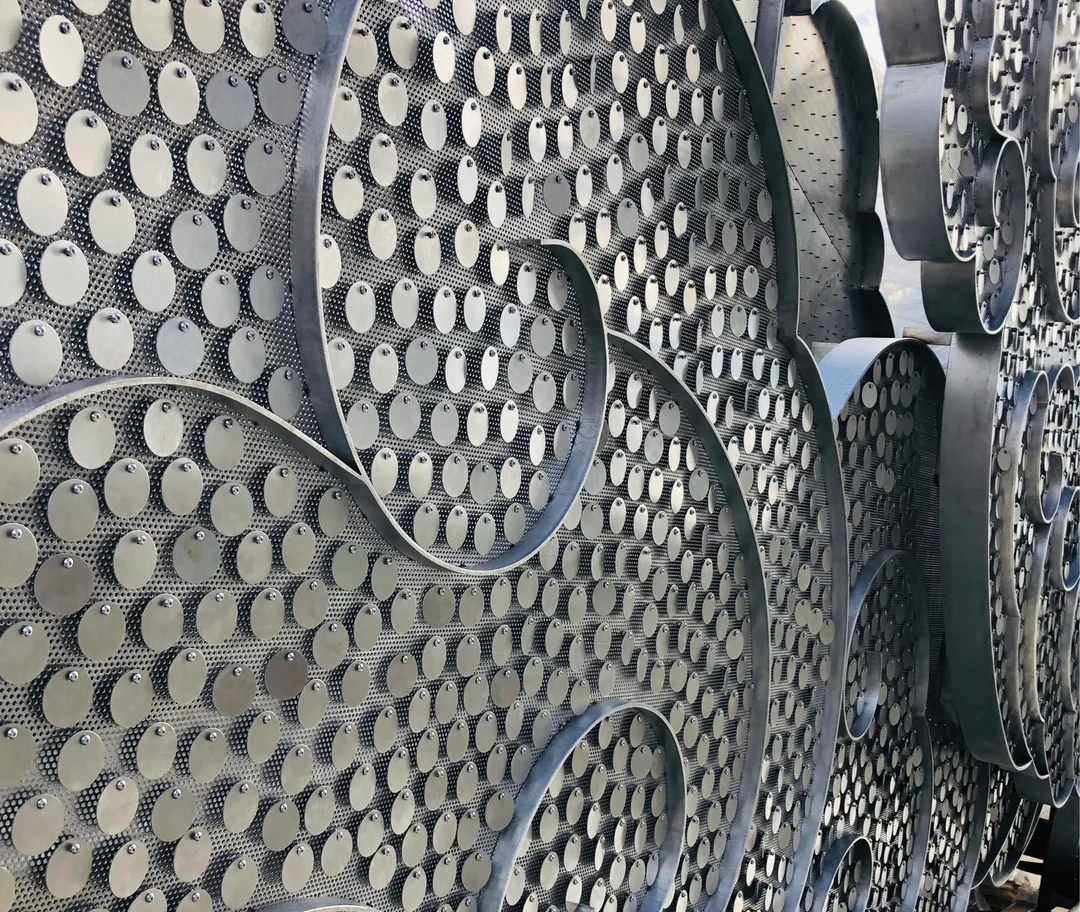

The reflective stainless steel discs and their shoulder-bolt connections.
03 /

Fabrication

Building the cloud columns

We fabricated the columns from cut-metal cylindrical forms. The open patterns reveal the layers inside, and blue lighting illuminates the finished columns at night.

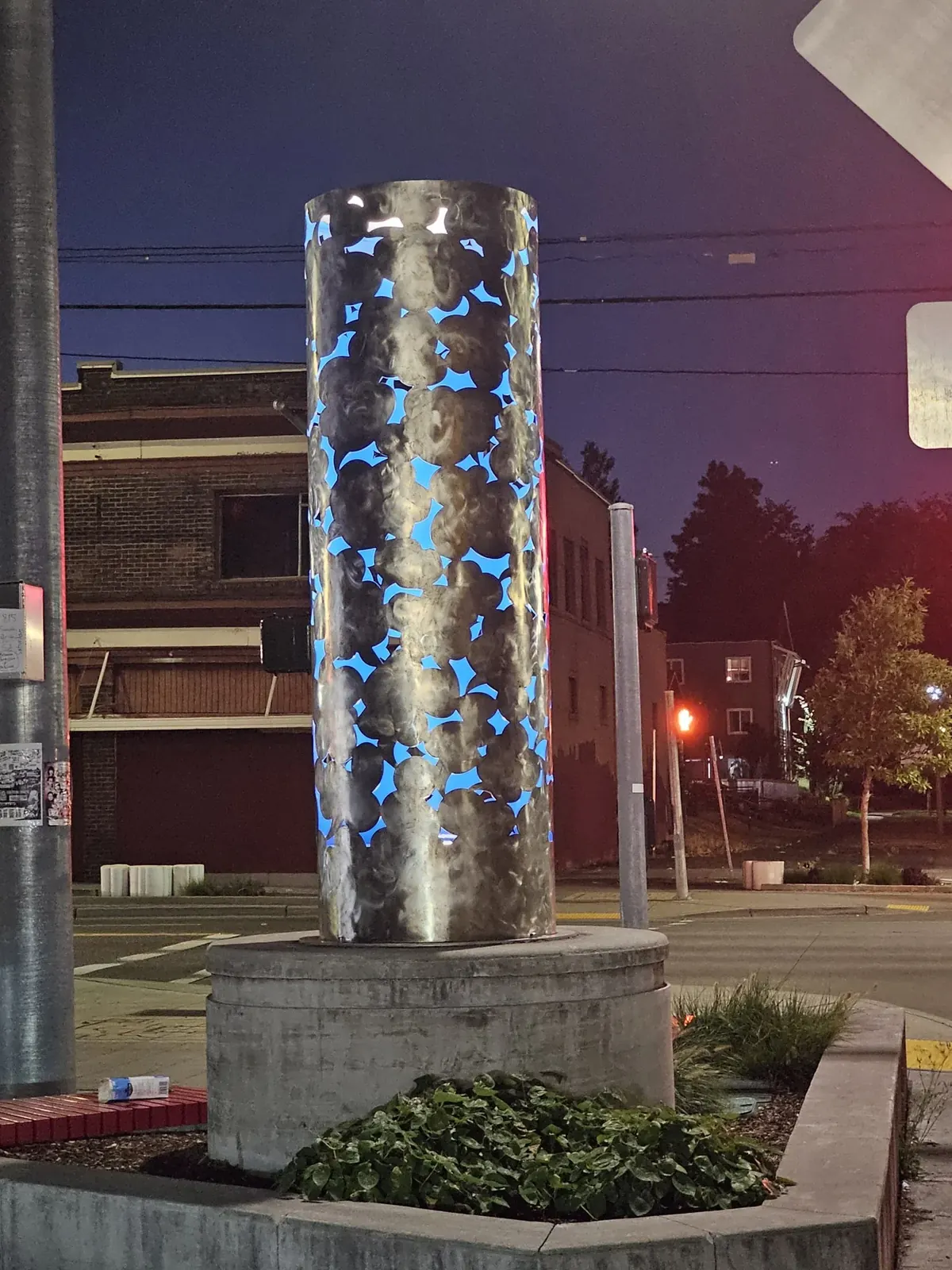

A finished cloud column, illuminated blue.

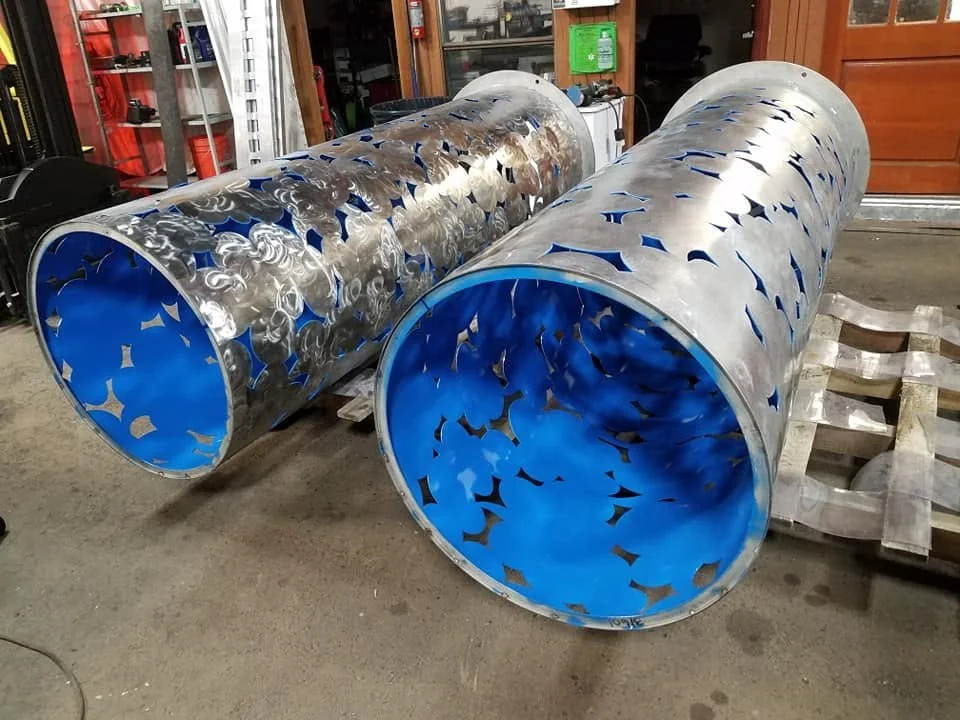

Paired column forms during fabrication.

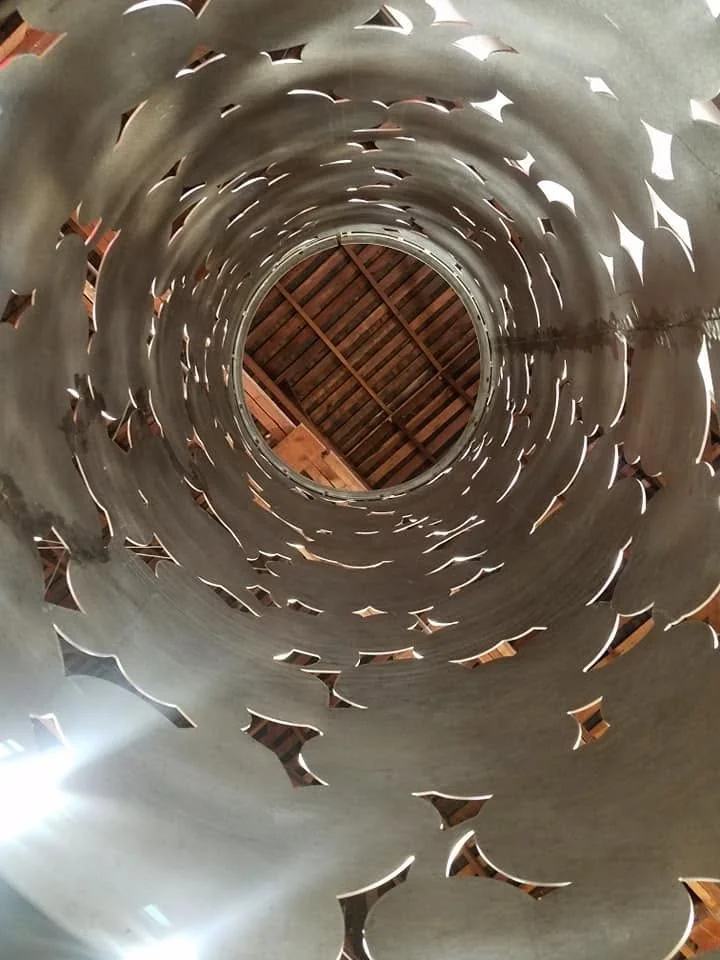

A view through the cylinder reveals the cut-metal pattern and its construction.
04 /

Lincoln International District

The two lantern sculptures

We fabricated two sculptures with three lanterns each, using the same lantern style as the district’s streetlights. They stand on opposite sides of the road at the entrance.

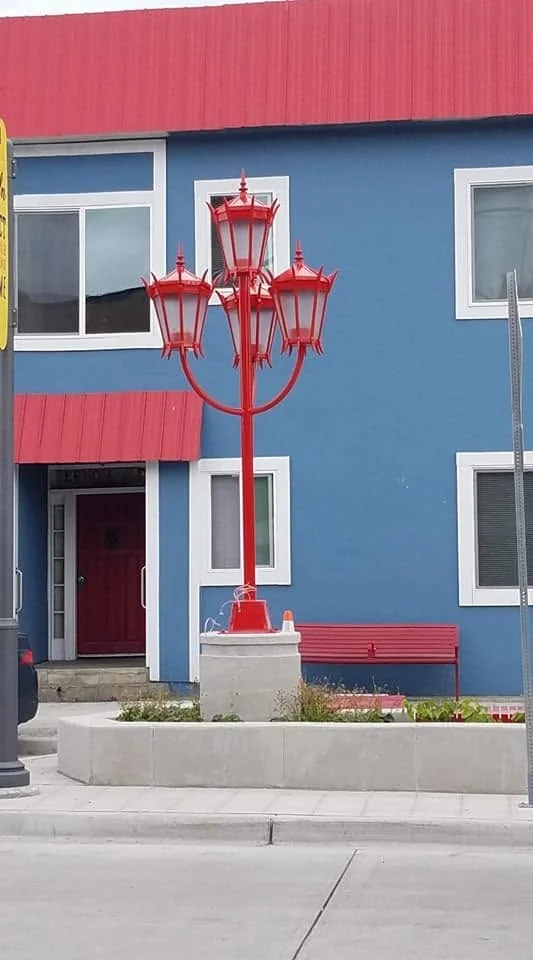

One of the two completed three-lantern sculptures.

Two sculptures · Three lanterns on each · Fabricated by Western Iron Works
